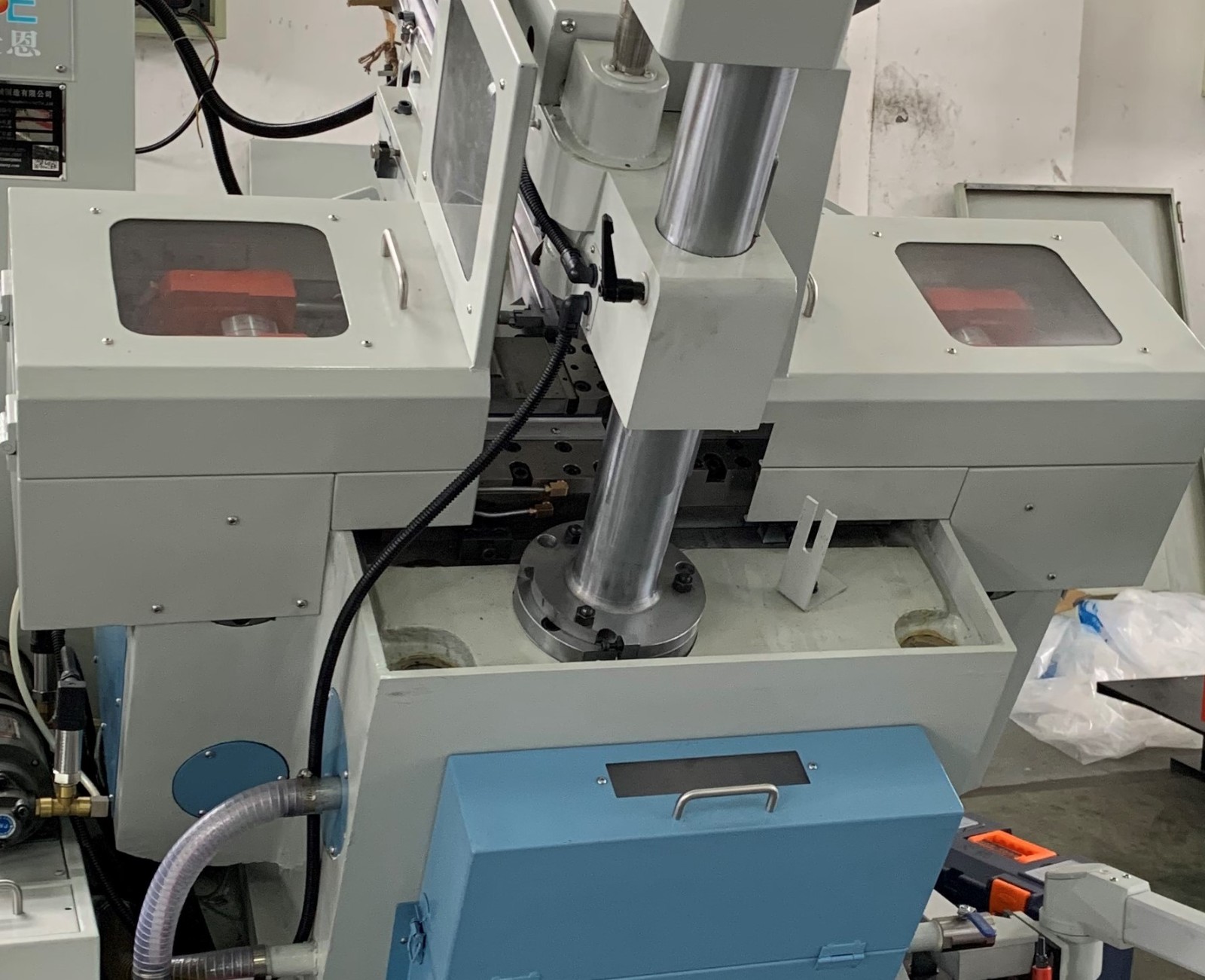

Pointer AE-6200D With Forging Slider Cover
High Speed High Precision Intelligent Self Drilling Screw Point Forming Machine/ Pinch Pointer
To form point of DIN7504 Self Drilling Screws
Model: AE-5150D with forging slider cover
Specification：
| Capacity | OD Φ: 3.5-5.5mm, length: 10-150mm. |
| Speed | 100-500PCS/min |
| Power | Inverter 7.5KW (10HP), Motor 5.5KW (7.5HP. 6P) . |
| Control system | PLC (Program Logical Control) |
| Transmission | INDEX |
| Lubrication system | Double oil pump, separate lubrication |
| Detection system | Touch Screen Human-Machine Interface, Error Display, Automatic on-line detection, Accurate error alarm. |
| Dimension | L1900*W1550*H1650mm |
| Packing size | L2000*W1600*H1800mm |
| Machine Weight | N.W.2300KG/G.W.2400KG |
Model: AE-6200D with forging slider cover
Specification:
| Capacity | OD Φ: 3.5-6.3mm, Length: 10-200mm. |
| Speed | Single punch 100-500PCS/min, Double punch 40-150PCS/min. |
| Power | Inverter 11KW (15HP), Motor 7.5KW (10HP. 6P). |
| Control system | PLC (Program Logical Control) |
| Transmission | INDEX |
| Lubrication system | Double oil pump, separate lubrication |
| Detection system | Touch Screen HMI Error Display, Automatic on-line detection, Accurate error alarm |
| Dimension | L1950*W1550*H1650mm |
| Packing size | L2100*W1600*H1800mm |
| Machine Weight | N.W. 2800KG/G.W.2900KG |
