Airon Automatic Self Drilling Screw Point Forming Machine (AE5150D and AE-6200D) is professional equipment for cold-forging drill points on DIN7504 self-drilling screws. It completes automatic feeding, positioning, and high-precision tip forming in one continuous process. Easily paired with heading and thread-rolling machines to create a full automatic production line. Ideal for mass production of carbon steel and stainless steel self-drilling screws used in construction, roofing, steel structures, and automotive hardware. Customized services available.
Airon Automatic Self-Drilling Screw Forming Machine is an efficient cold forging system built for high-volume output of 6#–16# self drilling screws in carbon steel and stainless steel. Featuring PLC control, production rates of 100–500 PCS/min, high-precision noiseless indexing, and durable square-track slides, it links smoothly with heading and thread-rolling machines to create a complete production line. Well-suited for construction, steel structure, automotive, and hardware applications. Suitable for a wide range of screw sizes, this self drilling screw machine is highly customizable to meet specific production requirements.

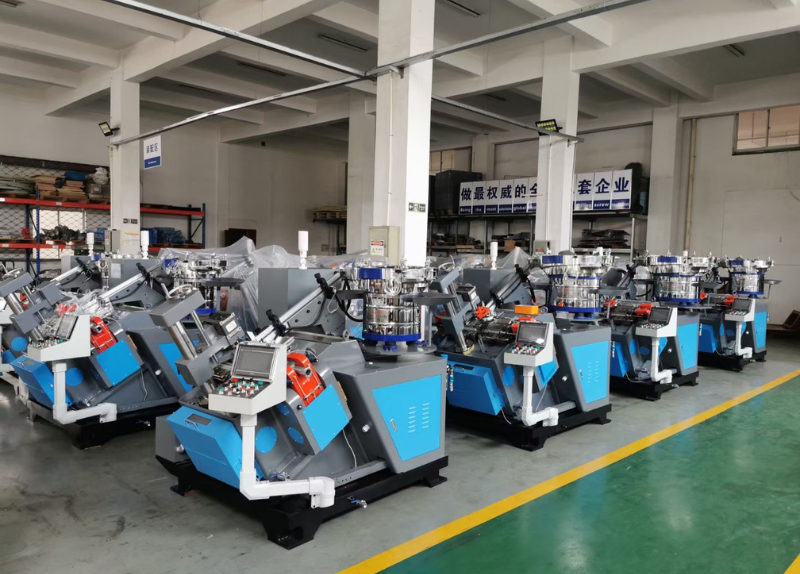

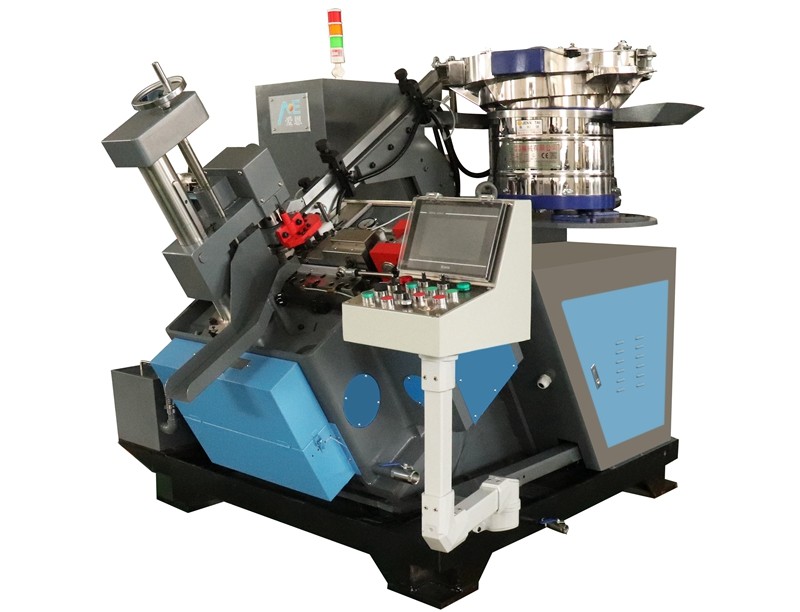

Model: AE5150D
Specification：
| Capacity | OD Φ: 2.8-5.5mm, length: 10-150mm. |
| Speed | 100-500PCS/min |
| Power | Inverter 7.5KW (10HP), Motor 5.5KW (7.5HP. 6P) . |
| Control system | PLC (Program Logical Control) |
| Transmission | INDEX |
| Lubrication system | Double oil pump, separate lubrication |
| Detection system | Touch Screen Human-Machine Interface, Error Display, Automatic on-line detection, Accurate error alarm. |
| Dimension | L1900*W1400*H1650mm |
| Packing size | L2000*W1600*H1800mm |
| Machine Weight | N.W.2300KG/G.W.2400KG |
Model: AE-6200D
Specification:
| Capacity | OD Φ: 2.8-6.0mm, Length: 10-200mm. |
| Speed | Single punch 100-500PCS/min, Double punch 40-150PCS/min. |
| Power | Inverter 11KW (15HP), Motor 7.5KW (10HP. 6P). |
| Control system | PLC (Program Logical Control) |
| Transmission | INDEX |
| Lubrication system | Double oil pump, separate lubrication |
| Detection system | Touch Screen HMI Error Display, Automatic on-line detection, Accurate error alarm |
| Dimension | L1900*W1550*H1650mm |
| Packing size | L2100*W1600*H1800mm |
| Machine Weight | N.W. 2800KG/G.W.2900KG |
Core Advantages & Selling Points

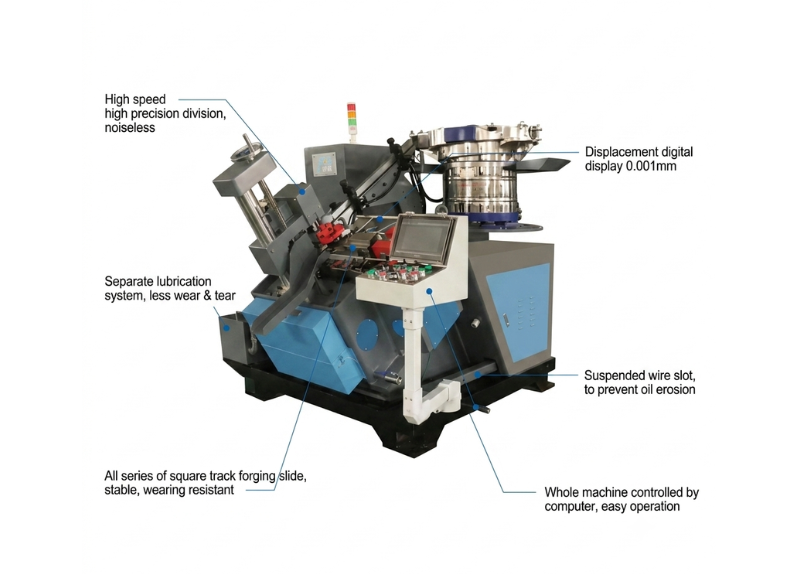

1. Full Automatic PLC Intelligent Control
Industrial PLC + Touch Screen HMI control. Vibration bowl auto feeding, real-time monitoring, automatic fault alarm & error display. Less manual intervention, lower labor cost.
2. High Precision & Stable Forming Quality
High-speed high-precision division, noiseless operation. Precision INDEX transmission + square track forging slide for stable, wear-resistant performance. 0.001 mm digital displacement display. Consistent quality, low defect rate.
3. High Production Efficiency & Wide Compatibility
Speed: 100–500 PCS/min. Supports multiple self-drilling screw specifications. Quick mold change, energy-saving transmission, low noise for continuous running.
4. Robust Structure & Easy Maintenance
Separate lubrication system reduces wear. Suspended wire slot prevents oil erosion. Wear-resistant square track design. Easy maintenance, longer service life.
1). Automatic Screw Feeding – Screw blanks are continuously fed into the forming station.
2). Precision Positioning – Each screw is accurately positioned and held for forming.
3). Drill Point Forming – The drill point is precisely forged to the required shape and angle.
4). Automatic Inspection & Discharge – Finished screws are checked and automatically discharged.
5). Continuous High-Speed Production – The machine runs continuously for stable and efficient output.
Typical Production Line:
Heading Machine → Self Drilling Screw Point Forming Machine → Thread Rolling Machine → Heat Treatment → Electroplating
Q1: What sizes of screw can Airon Automatic Self Drilling Screw Point Forming Machine produce?
A: Our machine is suitable for #6–#16 self-drilling screws, with screw lengths from 10–200 mm. It can be configured for different screw specifications according to production requirements.
Q2: What is the production speed of the machine?
A: The production speed is adjustable via inverter, ranging from 100 to 500PCS/min, allowing you to balance speed and tool life according to your actual production requirements.
Q3: Can the machine produce both carbon steel and stainless steel self drilling screws?
A: Yes. The machine can be configured for both carbon steel and stainless steel self-drilling screws, with suitable tooling for different materials.
Q4: How long do the drill point dies last?
A: Airon has been specializing in the self-drilling screw industry for years. Our drill point dies are made from high-quality tungsten carbide and manufactured in our dedicated tooling workshop with professional technical development. Compared with conventional dies, our tooling offers longer service life and stable performance for continuous screw production.
Q5: Can the machine work with my existing heading and thread rolling machines?
A: Yes. Our self drilling screw point forming machine can be integrated with heading and thread rolling machines to build a complete self-drilling screw production line.
Q6: What information do you need to recommend the right machine?
A: We normally need the screw diameter, length, material, drill point type and required production capacity. A screw sample or drawing is also helpful.
