Drill Point Dies for Self Drilling Screw Forming Machine
Tungsten steel / Carbide material
Features:
High precision screw drill point forming
Durable carbide material for long tool life
Suitable for most screw making machines
Custom designs available

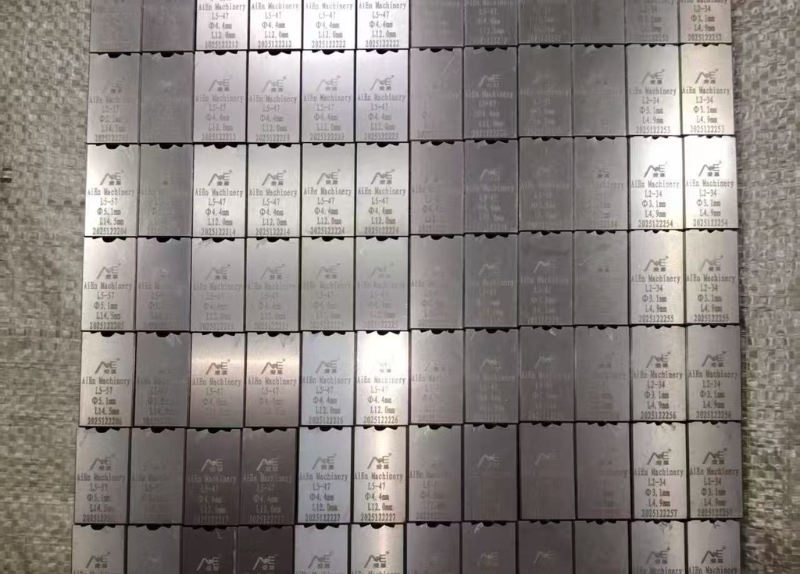

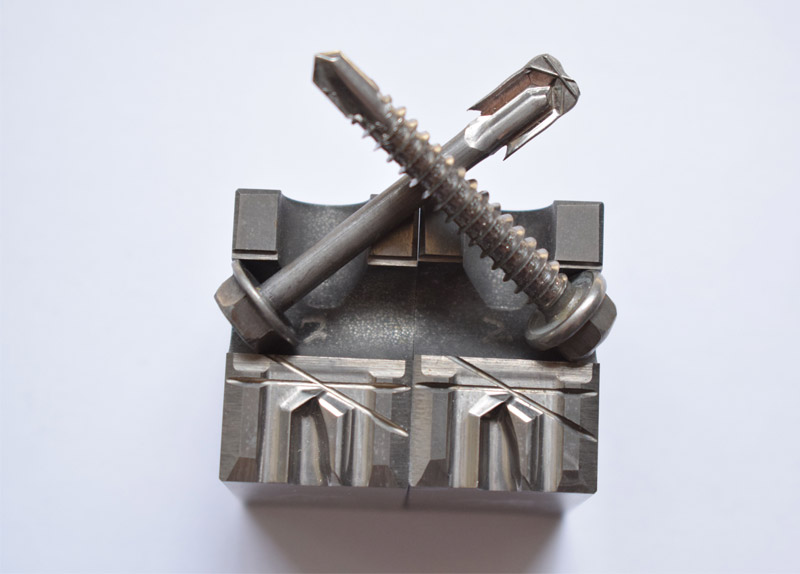

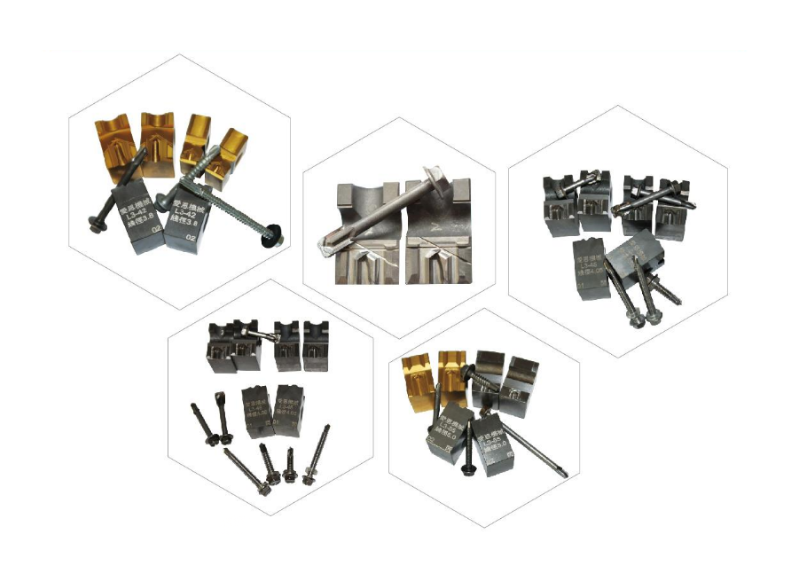

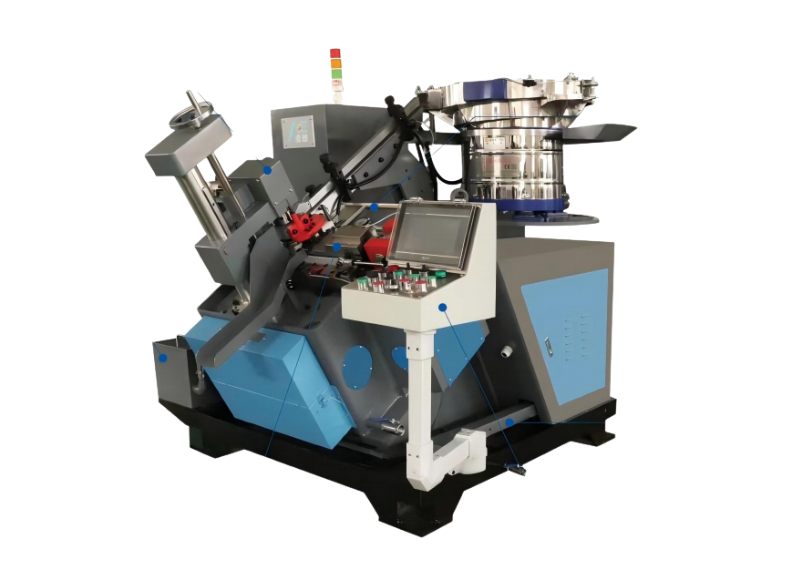

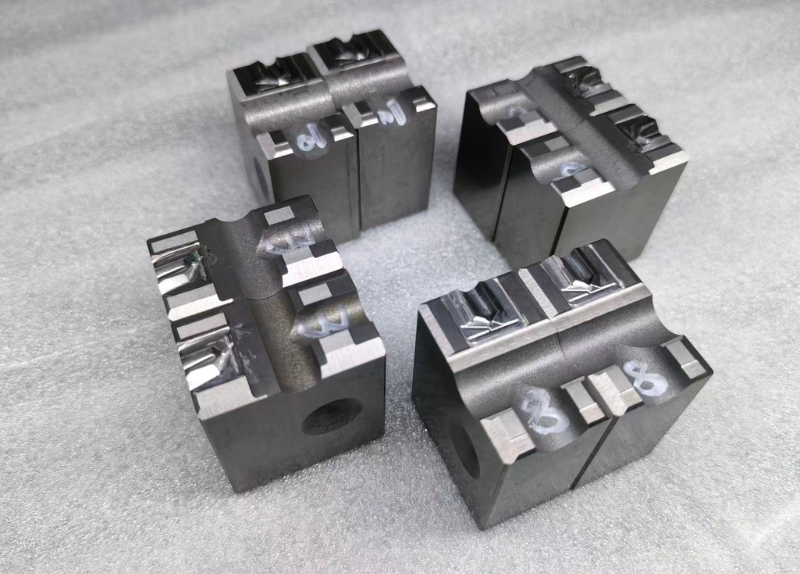

DIN standard Drill Point Dies,to form point of self drilling screws, normally carbon screws or stainless steel screws or MS screws. Work with Self drilling screw point forming machines,can be special designed. (Wire diameter & drill diameter & drill length data required.Drill speed requirement data need.)
HSS material
Tungsten steel / carbide material
Style I / MA
Style II / MB
Style III / MC
Over 10+ years tooling manufacturing experience.
Send drawing for quick quotation within 24 hours.
| NO.1 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L1-22 | 2.2 | 2.7 | 1.7 | 1.0 | STYLE ISTYLE II |
| -23 | 2.3 | ||||
| L1-27 | 2.7 | 3.4 | 2.4 | 1.5 | |
| -28 | 2.8 | ||||
| -29 | 2.9 | ||||
| -30 | 3.0 | ||||
| -31 | 3.1 | ||||
| L1-32 | 3.2 | 4.2 | 3.2 | 2.1 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L1-37 | 3.7 | 5.0 | 4.0 | 2.8 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4.0 | ||||
| -41 | 4.1 | ||||
| L1-43 | 4.3 | 6.0 | 5.0 | 3.6 | STYLE II |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L1-49 | 4.9 | 7.2 | 6.2 | 4.5 | |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.2 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L2-22 | 2.2 | 3.2 | 2.2 | 1.5 | STYLE ISTYLE II |
| -23 | 2.3 | ||||
| L2-27 | 2.7 | 4.0 | 3.0 | 2.1 | |
| -28 | 2.8 | ||||
| -29 | 2.9 | ||||
| -30 | 3.0 | ||||
| -31 | 3.1 | ||||
| L2-32 | 3.2 | 4.9 | 3.9 | 2.8 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L2-37 | 3.7 | 5.8 | 4.8 | 3.6 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4.0 | ||||
| -41 | 4.1 | ||||
| L2-43 | 4.3 | 6.9 | 5.9 | 4.5 | STYLE II |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L2-49 | 4.9 | 8.0 | 7.0 | 5.3 | |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.3 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L3-27 | 2.7 | 4.7 | 3.7 | 2.8 | STYLE ISTYLE II |
| -28 | 2.8 | ||||
| -29 | 2.9 | ||||
| -30 | 3.0 | ||||
| -31 | 3.1 | ||||
| L3-32 | 3.2 | 5.7 | 4.7 | 3.6 | |
| -33 | 3.3 | ||||
| -34 | 3.4 | ||||
| -35 | 3.5 | ||||
| -36 | 3.6 | ||||
| L3-37 | 3.7 | 6.7 | 5.7 | 4.5 | |
| -38 | 3.8 | ||||
| -39 | 3.9 | ||||
| -40 | 4.0 | ||||
| -41 | 4.1 | ||||
| L3-43 | 4.3 | 7.7 | 6.7 | 5.3 | |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L3-49 | 4.9 | 9.0 | 8.0 | 6.3 | STYLE II |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.4 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L4-43 | 4.3 | 8.7 | 7.7 | 6.3 | STYLE IISTYLE III |
| -45 | 4.5 | ||||
| -47 | 4.7 | ||||
| L4-49 | 4.9 | ||||
| -51 | 5.1 | ||||
| -53 | 5.3 | 11.7 | 10.7 | 9.0 | |
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.5 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L5-49 | 4.9 | 14.7 | 13.7 | 12.0 | STYLE III |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
| NO.6 DRILL POINT DIES | |||||
| DP DIE MODEL | DRILL DIA (D) | FLUTE LENGTH (L) | DRILL LENGTH (C) | MAX MATERIAL THICKNESS | DP DIE STYLE |
| L6-49 | 4.9 | 17.7 | 16.7 | 15.0 | STYLE III |
| -51 | 5.1 | ||||
| -53 | 5.3 | ||||
| -55 | 5.5 | ||||
| -57 | 5.7 | ||||
